Milled Tooth 16 Inch Tricone Rotary Drill Bits IADC 617

Hebei Crossing Drill Bit Manufacture Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Milled Tooth 16 Inch Tricone Rotary Drill Bits IADC 617 from wholesalers

    Buy cheap Milled Tooth 16 Inch Tricone Rotary Drill Bits IADC 617 from wholesalers
    • Buy cheap Milled Tooth 16 Inch Tricone Rotary Drill Bits IADC 617 from wholesalers

    Milled Tooth 16 Inch Tricone Rotary Drill Bits IADC 617

    Ask Lasest Price
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 50000PCS/Month
    Delivery Time : 5-15work days
    • Product Details
    • Company Profile

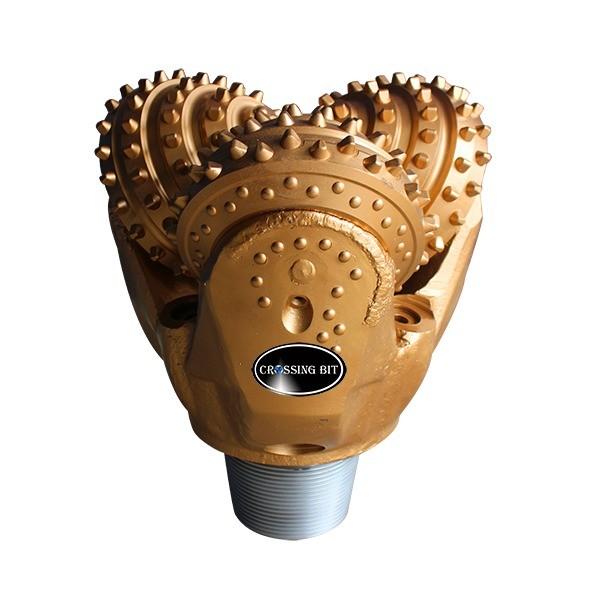

    Milled Tooth 16 Inch Tricone Rotary Drill Bits IADC 617


    Sliding shear is also an important cutting method for three cone drill bits. When the drill bit is drilling into high plastic rock layers, its cutting structure will produce relative sliding relative to the teeth. This sliding causes the cutting teeth of the drill bit to come into contact with the rock at a certain point in the wellbore, and its rotational speed is less than the revolution speed, resulting in shear fragmentation. Due to the fact that the shear strength of rocks is usually lower than their compressive strength, the efficiency of shear rock breaking is often greater than that of impact rock breaking. In addition, sliding shear can be more effectively achieved by designing super top, complex cone, and shifting axis for the cone bit body.

    PRODUCT SPECIFICATIONS

    product name

    16 inch CR617G TCI tricone bit

    size

    16inch,406.4mm

    model number

    CR617 with Chisel tooth

    series

    CR

    tooth type

    TCI

    connection

    75/8"Reg PIN

    bearing

    rubber sealed journal bearing

    Nozzle

    three jet nozzles

    application

    water well,oil well,HDD,exploration,etc

    weight

    230kg

    certificate

    A7-1,SY/T5164,ISO9001:2008

    RECOMMENDED ROCK FORMATION

    medium hard with high compressive strength and stick&hard stringers,such as hard shale,limestone,sandstone and dolomite,etc.

    RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

    Type&IADC code

    417

    437

    447

    517,527

    537,547

    617,627

    637,647

    737,837

    WOB(KN/mm)

    0.35~0.90

    0.35~0.95

    0.35~1.00

    0.35~1.05

    0.35~1.05

    0.35~1.05

    0.70~1.20

    0.70~1.20

    RPM(r/min)

    140~70

    140~60

    140~60

    120~50

    110~40

    80~40

    70~40

    70~40


    Company Profile

    Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.


    Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.


    Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.


    This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
