Soft To Hard Formation PDC Reamer Bit With Matrix Body

Ask Lasest Price
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	50000PCS/Month
Delivery Time :	5-15work days

Add to Cart

Product Details
Company Profile

Soft To Hard Formation PDC Reamer Bit With Matrix Body

PDC drill bits also have excellent stability and reliability. During the drilling process, it can maintain a stable drilling speed and direction, reduce deviations and vibrations, and ensure the smooth progress of drilling operations. In addition, PDC drill bits also have good self-cleaning ability, which can effectively remove drilling chips and impurities, and maintain the cleanliness and sharpness of the drill bit.

PDC drill bits have strong adaptability and can be widely used in multiple fields such as oil, natural gas, geothermal, and mining.

Whether in hard rock, soft rock, or mixed formations, PDC bits can be flexibly adjusted according to the characteristics of the formation, providing the best drilling effect. At the same time, PDC drill bits can also be customized according to customer needs to meet the special requirements of specific drilling scenarios.

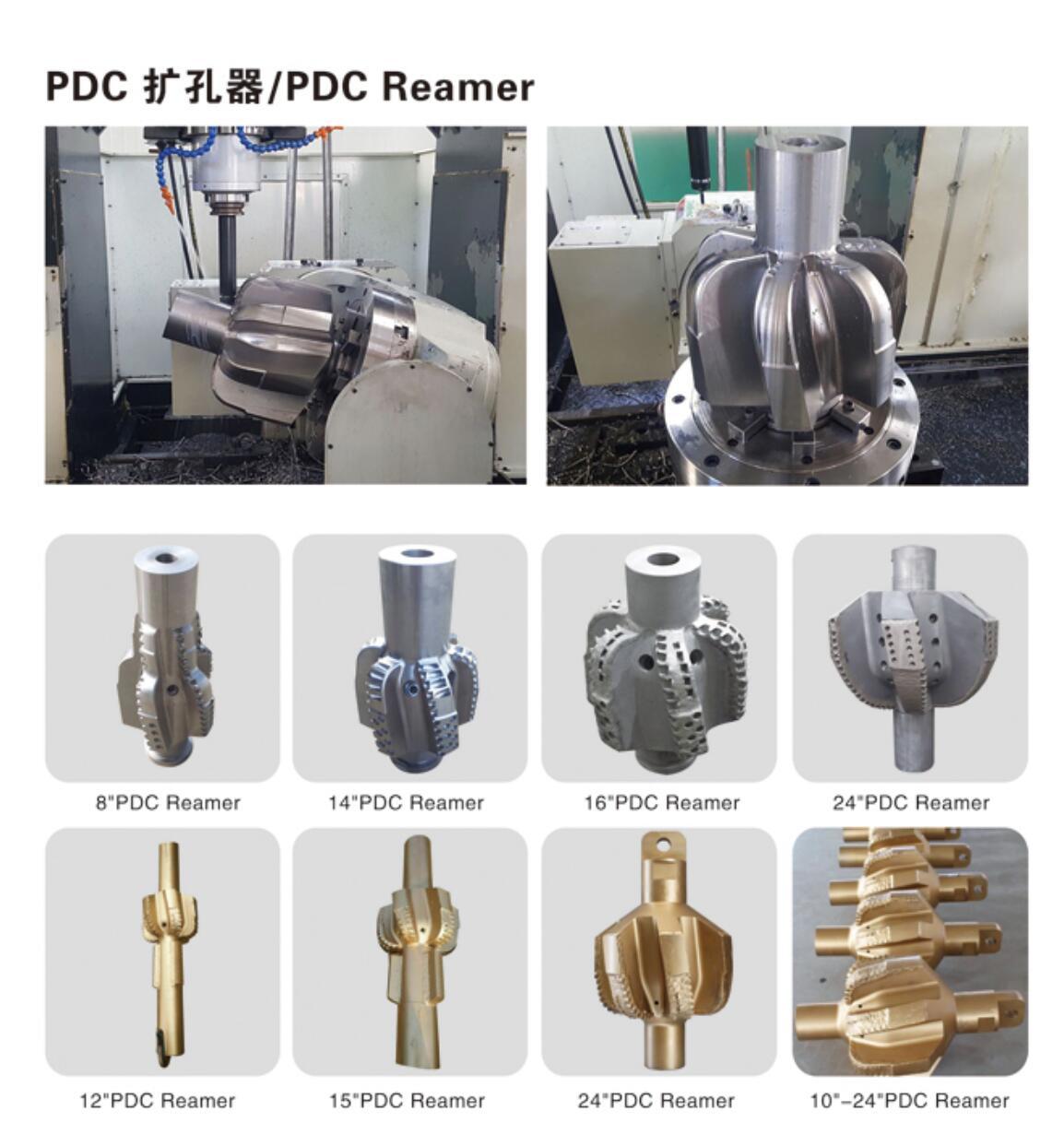

PDC Reamers are designed with a taper(straight) and a spiral blades(wings)

The purpose of the taper is to centralize the reamer in the pilot hole to ensure a symmetrical hole is cut, equalize the size of the cut from side to side and enable you to ream from pilot to finish bore in the majority of holes. The spiral on the reamer helps to reduce chatter as well as reduce fluctuating torque.

PDC Reamers are manufactured in push or pull body configuration, can be used both horizontally and vertically and are designed for 25,000 psi compressive strength or less hard formations. On many occasions, they have completed bores 50% faster than traditional methods.

6″ to 28″, and offer 30″ to 48″ made to order. All our Crossing PDC Reamers are manufactured to the highest standards

Soft To Hard Formation PDC Reamer Bit With Matrix Body

Regular Models of PDC Bits
Regular Sizes	Regular IADC	API Reg Pin	Make-up Torque(N.m)
3 7/8"(98.4mm)	126/216/637	2 3/8	4100~4700
4 5/8"(117.4mm)	126/216/517/537/637	2 7/8	6100~7500
5 1/4"(133.3mm)		3 1/2	9500~12200
5 5/8"(142.8mm)
5 7/8"(149.2mm)
6"(152.4mm)	126/127/216/517/537/617/637
6 1/4"(158.7mm)
6 1/2"(165mm)
7 1/2"(190mm)	126/216/517/537	4 1/2	16300~21700
7 5/8"(193mm)
7 7/8"(200mm)
8 1/2"(215.9mm)	117/127/217/437/517/537/617/637
9 1/2"(241.3mm)		6 5/8	38000~43400
9 7/8"(250.8mm)
10 5/8(269.8mm)
11 5/8(295.3mm)
12 1/4"(311.1mm)
13 5/8"(346.0mm)	127/217/517/537/617/637
14 3/4"(374.6mm)		7 5/8	46100~54200
17 1/2"(444.5mm)	114/115/125/215/515/535/615/635
26"(660.4mm)	114/115/125/215/515/535/615

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
